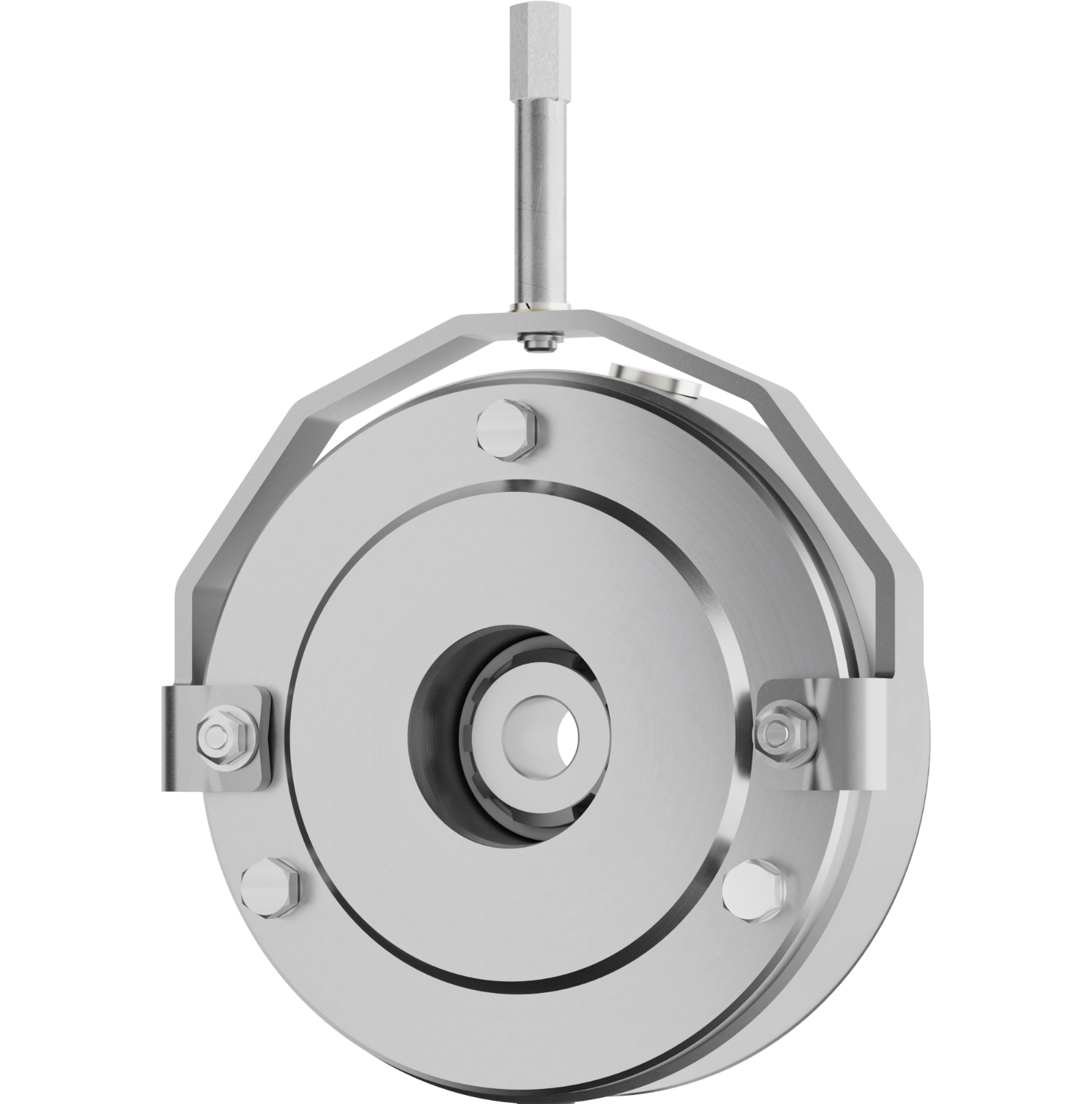

FDS Gekapselte Haltebremse

FDS

Encapsulated holding brake
3-30 Nm
Brake torque
IP 65
Protection class

The FDS series is the solution for areas of application in which the brake must be protected from external influences such as dirt, dust or moisture. Thanks to the magnet housing specially manufactured by Precima, the brake offers an optimized range of performance as a holding brake with emergency stop function, despite its compact and cost-effective design.

Frequently used in these industries

Precima brakes have been successfully used in the field of industrial trucks for years. Whether in lift trucks, reach trucks, order pickers or electric forklifts, we are "at home" in the multi-layered application of industrial trucks.

Flurfoerderer Gabelstapler
AGVs (Automatic Guided Vehicles) transportieren Produkte in Kartons

Specifications

Size Braking torque
[Nm]
Outer diameter
[mm]
Height
[mm]
08 5 89 31,5
10 10 109 31,5
13 20 134 39,5

Maße in der Tabelle [mm]
* Toleranzen der Bremsmomente, S. Betriebs- und Montageanleitung
** Passfedernut nach DIN 6885 Bl.1
Haltebremsen = Standardbremsmoment Mb * 1,5
Einbaulage der Nabe nach Betriebs- und Montageanleitung

Options

  • Manual hand release
  • Mounting flange
  • Sealing cap
  • Cover cap
