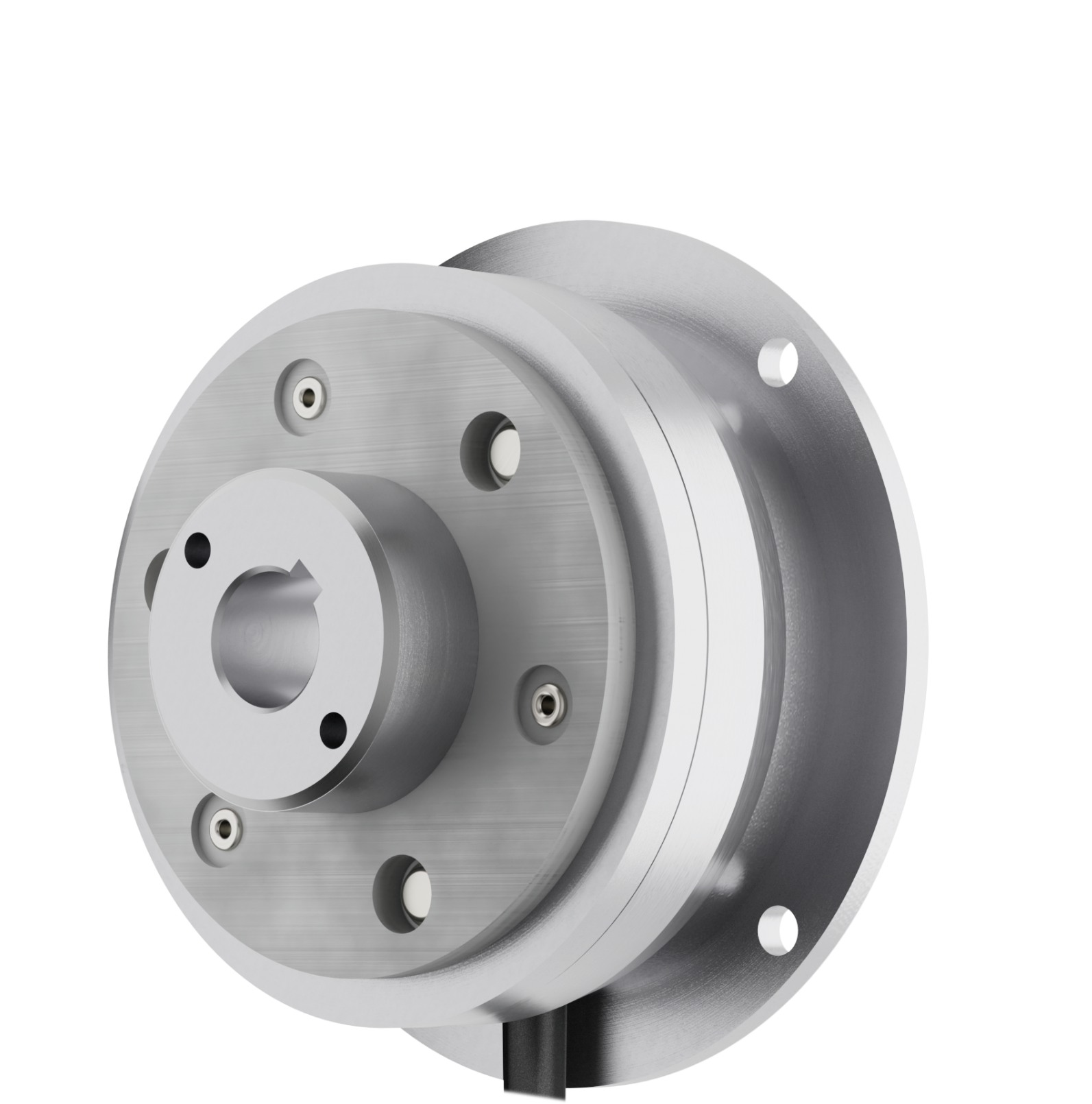

OMB/OLB, OLK/OLG
Especially for mechanical and apparatus engineering
The PRECIMA electromagnetic clutches and brakes have been specially developed for the requirements of modern mechanical and apparatus engineering.
Due to their interesting price/performance ratio, work-current-actuated clutches and brakes are the optimal solution for starting, braking, positioning, and securely holding masses for shaft and flange-mounted installation in plant and mechanical engineering.
These clutches and brakes use the power flow of an electromagnet concentrated on pole faces for a non-positive connection of shafts and hubs in the torque range from 7.5 to 120 Nm.
This product maturity is particularly evident in extreme applications, where short switching cycles are required with maximum of safety standards.
Due to the high-quality standards in development, material selection and production, they meet all the demands of today's drive technology.
| Size | Braking torque [NM] | Outer diameter [mm] | Height /armature F2 [mm] | Height /armatureF1 [mm] | Height /armature 0 [mm] |
|---|---|---|---|---|---|
| 65 | 7,5 | 80 | 31,7 | 43 | 28 |
| 80 | 15 | 100 | 35 | 51 | 31 |
| 100 | 30 | 125 | 40,7 | 61 | 36 |
| 125 | 60 | 150 | 46,3 | 70,5 | 40,5 |
| 160 | 120 | 190 | 54 | 85 | 47 |
Maße in der Tabelle [mm]
* Toleranzen der Bremsmomente, S. Betriebs- und Montageanleitung
** Passfedernut nach DIN 6885 Bl.1
Haltebremsen = Standardbremsmoment Mb * 1,5
Einbaulage der Nabe nach Betriebs- und Montageanleitung
| Size | Braking torque [NM] | Outer diameter [mm] | Height /armature F2 [mm] | Height /armature F1 [mm] | Height /armature 0 [mm] |
|---|---|---|---|---|---|
| 65 | 7,5 | 68 | 67,7 | 59 | 44 |
| 80 | 15 | 87 | 73,7 | 68,5 | 48,5 |
| 100 | 30 | 108 | 84,7 | 80 | 55 |
| 125 | 60 | 135 | 96,8 | 92 | 62 |
| 160 | 120 | 170 | - | 111 | 73 |
Maße in der Tabelle [mm]
* Toleranzen der Bremsmomente, S. Betriebs- und Montageanleitung
** Passfedernut nach DIN 6885 Bl.1
Haltebremsen = Standardbremsmoment Mb * 1,5
Einbaulage der Nabe nach Betriebs- und Montageanleitung
| Size | Braking torque [NM] | Outer diameter [mm] | Height /armature F2 [mm] | Height /armature F1 [mm] | Height /armature 0 [mm] |
|---|---|---|---|---|---|
| 65 | 7,5 | 80 | 51,7 | 43 | 28 |
| 80 | 15 | 100 | 56,2 | 51 | 31 |
| 100 | 30 | 125 | 65,7 | 61 | 36 |
| 125 | 60 | 150 | 75,3 | 70,5 | 40,5 |
| 160 | 120 | 190 | - | 85 | 47 |
Maße in der Tabelle [mm]
* Toleranzen der Bremsmomente, S. Betriebs- und Montageanleitung
** Passfedernut nach DIN 6885 Bl.1
Haltebremsen = Standardbremsmoment Mb * 1,5
Einbaulage der Nabe nach Betriebs- und Montageanleitung
| Size | Braking torque [NM] | Outer diameter [mm] | Height /armature F2 [mm] | Height /armature F1 [mm] | Height /armature 0 [mm] |
|---|---|---|---|---|---|
| 65 | 7,5 | 80 | 26,2 | 37,5 | 22,5 |
| 80 | 15 | 100 | 28,7 | 44,7 | 24,7 |
| 100 | 30 | 125 | 33,2 | 53,5 | 28,5 |
| 125 | 60 | 150 | 38 | 62,2 | 32,2 |
Maße in der Tabelle [mm]
* Toleranzen der Bremsmomente, S. Betriebs- und Montageanleitung
** Passfedernut nach DIN 6885 Bl.1
Haltebremsen = Standardbremsmoment Mb * 1,5
Einbaulage der Nabe nach Betriebs- und Montageanleitung
