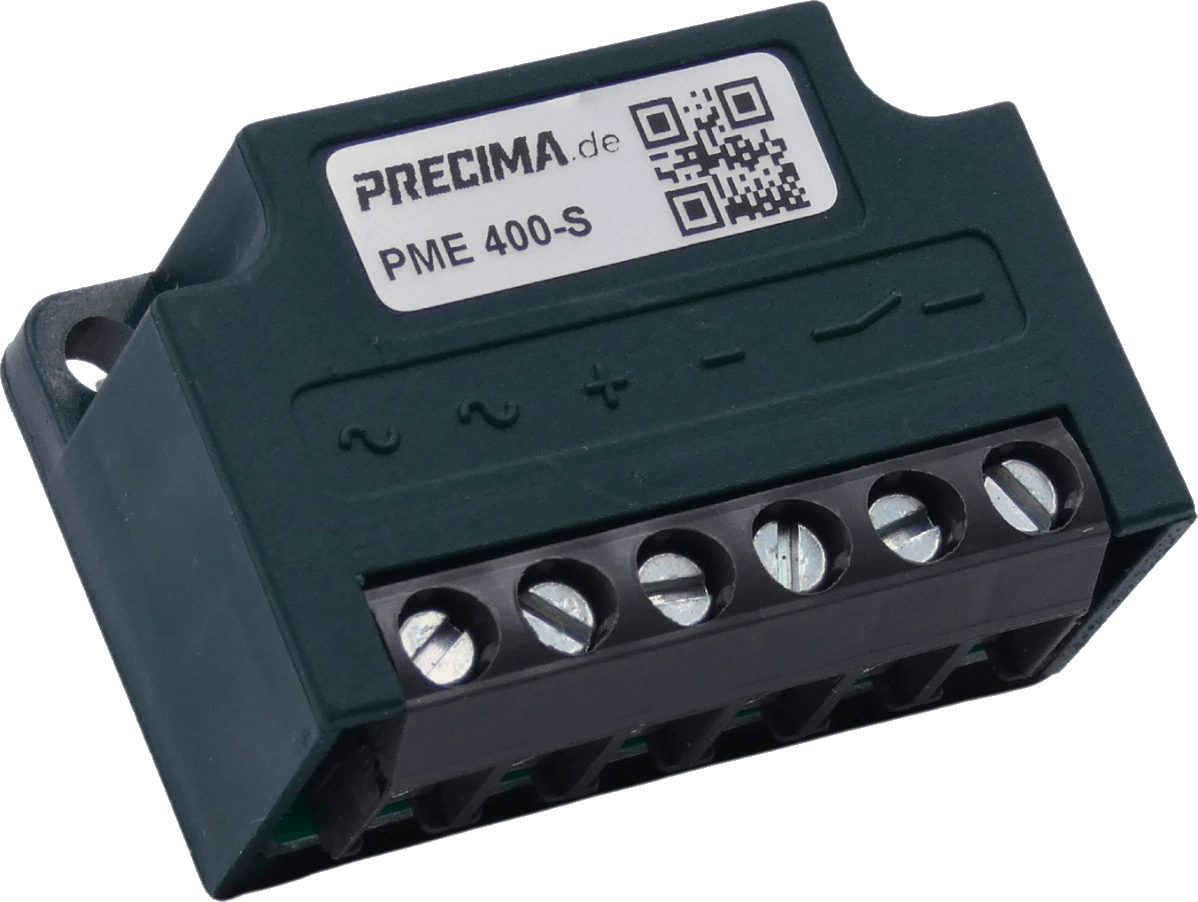

PME 400-S Half-wave rectifier

The PRECIMA PME 400-S one-way rectifier is a high-quality one-way rectifier for spring-applied brakes and other DC consumers, which has been specially developed for reliable power supply from an AC voltage of up to 400 VAC. As a rectifier for electric motors and industrial applications, the PME 400-S is ideal for use in combination with electromagnetic spring brakes, electromagnetic brakes, electromagnetic clutches and other DC applications where a precise and reliable DC power supply is crucial.

The PME 400-S efficiently converts alternating current into direct current by allowing current to flow in only one direction and blocking it in the other direction. This results in a periodically interrupted direct current that is ideal for many industrial applications. For example, an input voltage of 230 VAC results in a coil voltage of 103 VDC (0.45 x UIN).

PRECIMA PME rectifiers are protected against overvoltage by varistors in the input and output to ensure high operational reliability and durability. PME rectifiers are available for both AC-side and DC-side switching. With a maximum output current of 1 A at 45 °C and 0.5 A at 100 °C, the PME 400-S is suitable for a variety of applications.

Thanks to its compact dimensions and low weight, the rectifier can be easily integrated into existing terminal boxes or enclosures. The 6-pin connection allows for quick and easy installation. The PME 400-S is therefore a good choice for all applications that require a robust, reliable and space-saving rectifier with overvoltage protection.
